Produktbeschreibung
ETK Bedienungshinweise:

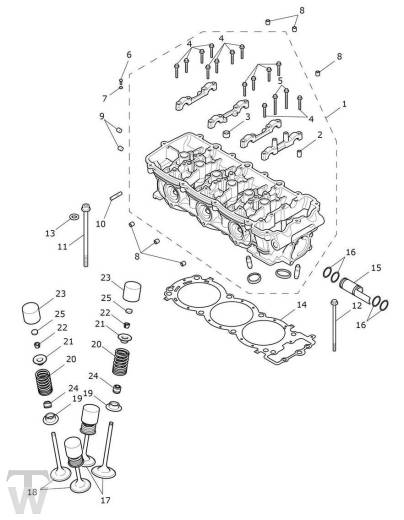

- Teile anhand der laufenden Nummer aus dem Teilefiche in der Tabelle auswählen
- Artikelnummer anklicken, um zu den Details zu gelangen und die entsprechende Menge in den Warenkorb zu legen
- [Zurück zur letzten Seite] Link benutzen, um zu dieser Teileliste zurückzukehren
- Spalte [Benötigt] und [Hinweise] beachten! Hinweise zur VIN Trennung mit der eigenen FIN vergleichen!
- Verkleidungsteile (Neuteile) sind mit Dekor versehen und montagefertig
- bei Unsicherheit ob Teile passen, schreibt uns gern vorher eine Mail mit eurer Fahrgestellnummer
- jede OEM-Nr. ist nur 1 Stück! Die Menge muss im Warenkorb angepasst werden!
| Nr. | OEM-Details | Bezeichnung | Benötigt | Hinweise |
| 1 |  T1158274 | Cylinder Head,3 Cyl, M/C | 1 | |
| 2 | T3000101 | Dowel, Hollow,8 x 14 | 8 | |
| 3 | T3450000 | Plug, PTF-SAE Short,3/8-18, Enc | 3 | |
| 4 | T3205600 | Bolt, HHF, Lghtd, M6 x 35,10.9 | 14 | |
| 5 | T3205074 | Bolt, HHF, Lghtd, M6 x 55, Slv | 2 | |
| 6 | T1159925 | Restrictor, Oil | 2 | > Eng No AD5458, All Except BR & > Eng No AD5008, BR Only |
| 6 | T3450184 | Restrictor, Oil,1.0mm | 2 | Eng No AD5459 > All Except BR & Eng No AD5009 > BR Only |
| 7 | T1151225 | O Ring, Restrictor | 2 | > Eng No AD5458, All Except BR & > Eng No AD5008, BR Only |
| 8 | T3459988 | Plug,1/8-28 BSPT, Enc | 6 | |
| 9 | T3458888 | Plug, Dryseal, NPFT,1/16-27, Enc | 2 | |
| 10 | T3100004 | Stud, M8 x 38, Shld, Enc | 9 | |
| 11 | T1159970 | Bolt, M11 x 179, Grade 12.9 | 8 | |
| 12 | T3203093 | Bolt, RHHF, M8 x 150, Slv | 2 | |
| 13 | T3550314 | Washer, M12, Hardened | 8 | |
| 14 | T1159960 | Gasket, Cyl Head,3 Cyl,110.2 | 1 | |
| 15 | T1159955 | Pipe, Coolant Exit | 1 | |
| 16 | T3600188 | O Ring, Fluorocarbon | 4 | |
| 17 | T1139910 | Valve, Inlet, Dia 37.9, TI | 6 | |
| 18 | T1130760 | Exhaust Valve, Dia 32.3 | 6 | |
| 19 | T1139977 | Top Hat, Overmoulded | 12 | |
| 20 | T1130758 | Valve Spring | 12 | |
| 21 | T1130755 | Retainer, Valve Spring | 12 | |
| 22 | T1135500 | Collet, Valve,5.5mm | 24 | |
| 23 | T1130759 | Tappet, Bucket, Dia 25.4 | 12 | |
| 24 | T1139955 | Seal, Oil Valve Stem | 12 | |
| 25 | T1131011 | Shim, Dia 9.5,1.725 mm | -1 | |
| 25 | T1131012 | Shim, Dia 9.5,1.750 mm | -1 | |
| 25 | T1131013 | Shim, Dia 9.5,1.775 mm | -1 | |
| 25 | T1131014 | Shim, Dia 9.5,1.800 mm | -1 | |
| 25 | T1131015 | Shim, Dia 9.5,1.825 mm | -1 | |
| 25 | T1131016 | Shim, Dia 9.5,1.850 mm | -1 | |
| 25 | T1131017 | Shim, Dia 9.5,1.875 mm | -1 | |
| 25 | T1131018 | Shim, Dia 9.5,1.900 mm | -1 | |
| 25 | T1131019 | Shim, Dia 9.5,1.925 mm | -1 | |
| 25 | T1131020 | Shim, Dia 9.5,1.950 mm | -1 | |
| 25 | T1131021 | Shim, Dia 9.5,1.975 mm | -1 | |
| 25 | T1131022 | Shim, Dia 9.5,2.000 mm | -1 | |
| 25 | T1131023 | Shim, Dia 9.5,2.025 mm | -1 | |
| 25 | T1131024 | Shim, Dia 9.5,2.050 mm | -1 | |
| 25 | T1131025 | Shim, Dia 9.5,2.075 mm | -1 | |
| 25 | T1131026 | Shim, Dia 9.5,2.100 mm | -1 | |
| 25 | T1131027 | Shim, Dia 9.5,2.125 mm | -1 | |
| 25 | T1131028 | Shim, Dia 9.5,2.150 mm | -1 | |
| 25 | T1131029 | Shim, Dia 9.5,2.175 mm | -1 | |
| 25 | T1131030 | Shim, Dia 9.5,2.200 mm | -1 | |
| 25 | T1131031 | Shim, Dia 9.5,2.225 mm | -1 | |
| 25 | T1131032 | Shim, Dia 9.5,2.250 mm | -1 | |
| 25 | T1131033 | Shim, Dia 9.5,2.275 mm | -1 | |
| 25 | T1131034 | Shim, Dia 9.5,2.300 mm | -1 | |
| 25 | T1131035 | Shim, Dia 9.5,2.325 mm | -1 | |
| 25 | T1131036 | Shim, Dia 9.5,2.350 mm | -1 | |
| 25 | T1131037 | Shim, Dia 9.5,2.375 mm | -1 | |
| 25 | T1131038 | Shim, Dia 9.5,2.400 mm | -1 | |
| 25 | T1131039 | Shim, Dia 9.5,2.425 mm | -1 | |
| 25 | T1131040 | Shim, Dia 9.5,2.450 mm | -1 | |
| 25 | T1131041 | Shim, Dia 9.5,2.475 mm | -1 | |
| 25 | T1131042 | Shim, Dia 9.5,2.500 mm | -1 | |
| 25 | T1131043 | Shim, Dia 9.5,2.525 mm | -1 | |
| 25 | T1131044 | Shim, Dia 9.5,2.550 mm | -1 | |
| 25 | T1131045 | Shim, Dia 9.5,2.575 mm | -1 | |
| 25 | T1131046 | Shim, Dia 9.5,2.600 mm | -1 | |
| 25 | T1131047 | Shim, Dia 9.5,2.625 mm | -1 | |
| 25 | T1131048 | Shim, Dia 9.5,2.650 mm | -1 | |
| 25 | T1131049 | Shim, Dia 9.5,2.675 mm | -1 | |
| 25 | T1131050 | Shim, Dia 9.5,2.700 mm | -1 | |
| 25 | T1131051 | Shim, Dia 9.5,2.725 mm | -1 | |
| 25 | T1131052 | Shim, Dia 9.5,2.750 mm | -1 | |
| 25 | T1131053 | Shim, Dia 9.5,2.775 mm | -1 | |
| 25 | T1131054 | Shim, Dia 9.5,2.800 mm | -1 | |
| 25 | T1131055 | Shim, Dia 9.5,2.825 mm | -1 | |
| 25 | T1131056 | Shim, Dia 9.5,2.850 mm | -1 | |
| 25 | T1131057 | Shim, Dia 9.5,2.875 mm | -1 | |
| 25 | T1131058 | Shim, Dia 9.5,2.900 mm | -1 | |
| 25 | T1131059 | Shim, Dia 9.5,2.925 mm | -1 | |
| 25 | T1131060 | Shim, Dia 9.5,2.950 mm | -1 | |
| 25 | T1131061 | Shim, Dia 9.5,2.975 mm | -1 | |
| 25 | T1131062 | Shim, Dia 9.5,3.000 mm | -1 | |
| 25 | T1131063 | Shim, Dia 9.5,3.025 mm | -1 | |
| 25 | T1131064 | Shim, Dia 9.5,3.050 mm | -1 | |
| 25 | T1131065 | Shim, Dia 9.5,3.075 mm | -1 | |
| 25 | T1131066 | Shim, Dia 9.5,3.100 mm | -1 |
Bedeutung der Hinweise (VIN oder ohne Hinweis=Fahrzeugidentnummer / ENG=Motornummer)
> xxxxx bedeutet BIS Identnummer xxxxx
xxxxx > bedeutet AB Identnummer xxxxx
LH bedeutet Left Hand / Links
RH bedeutet Right Hand / Rechts
obs (obsolete) bedeutet Wird nicht mehr produziert = Nicht mehr bestellbar.
