Fussrasten - Tiger 660 Sport

EPC Operating Instructions:

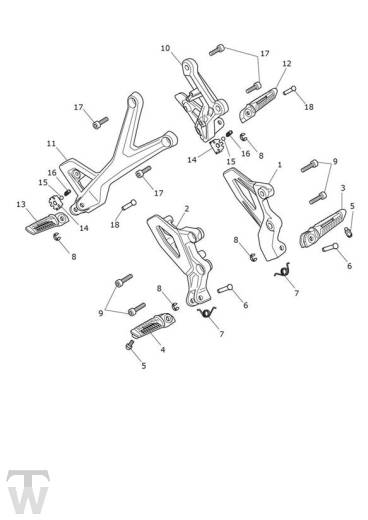

- choose parts by number from picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- Note the colums [Needed] and [Hints]. Compare your VIN with the given hint.
- new fairings are attached with decals and ready to mount
- if you are unsure selecting the right parts, please wright us an email including your VIN
- every part number is 1 piece each! >> Adjust the needed amount before putting them into the cart!

Lfd.Nr.	OEM-Details	Description	Needed	Hints
1	T2087521	Control Plate, LH	1
2	T2087522	Control Plate, RH	1
3	T2082830	Footrest, Front, LH	1
4	T2082831	Footrest, Front, RH	1
5	T2085164	Bank Angle Peg	2
6	T2080546	Lagerstift	2
7	T2080819	Return Spring, Footrest	2	> BE4698
7	T2089638	Return Spring, Footrest	1	BE4698 >
8	T3500207	SICHERUNGSSCHEIBE AUSSEN 8 X 0.89	4
9	T3050323	Screw, Cap/Hd, M8 x 30, Slv	4
10	T2082679	Footrest Hanger, LH	1
11	T2082680	Footrest Hanger, RH	1
12	T2088202	Footrest, Rear, LH	1
13	T2088203	Footrest, Rear, RH	1
14	T2081672	Detent Plate	2
15	T2081675	Detent Ball	2
16	T2081674	Spring, Detent	2
17	T3051097	Screw, Cap/Hd, M8 x 25, Silver	4
18	T2080547	Lagerstift	2

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx
xxxxx > means FROM Ident Number xxxxx

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.

ATTENTION: Parts from fiches will be specially ordered for your Triumph Enginecycle from the manufacturer.
The fee for returned parts is 25%.
