Footrests - Rocket 3GT Black

EPC Operating Instructions:
- select parts by number from the picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- every OEM-Nr. = 1 piece > adjust amount in cart
- compare hints (if given) with your VIN
- new fairings includes decals / are ready for installation
- for repairs decals can be ordered as single / use our support to check the correct part number before ordering

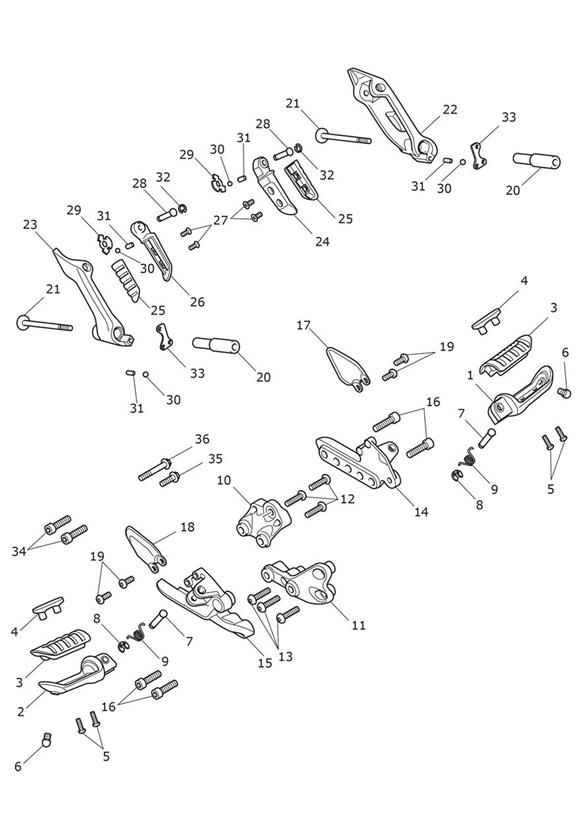

Nr.	OEM-Details	Description	Needed	Hints
1	T2082749	Footrest, LH, Black	1
2	T2082667	Footrest, RH, Black	1
3	T2082336	Rubber, Footrest	2
4	T2082506	Insert, Footrest	2
5	T3330728	Screw, Pan/Hd, Tx, M5 x 16, Enc	4
6	T2085164	Bank Angle Peg	2
7	T2080546	Lagerstift	2
8	T3500207	SICHERUNGSSCHEIBE AUSSEN 8 X 0.89	2
9	T2089638	Return Spring, Footrest	2
10	T2082322	Mount, Control Plate, LH	1
11	T2082324	Mount, Control Plate, RH	1
12	T3335015	Screw, But/Hd, TX, M8 x 30	3
13	T3335016	Screw, But/Hd, M8 x 35	3
14	T2082327	Control Plate, LH, F	1
15	T2082328	Control Plate, RH, F	1
16	T3203206	Screw, Cap/Hd, M10 x 35, Slv	4
17	T2082750	Heel Guard, LH, Black	1
18	T2082751	Heel Guard, RH, Black	1
19	T3330334	Screw, Tx, Pan/Hd, M6 x 16, Slv	4
20	T2083303	Sleeve, Pivot, Hanger	2
21	T3332696	Bolt, TX, M8 x 110	2
22	T2082731	Footrest Hanger, LH, Black	1
23	T2082732	Footrest Hanger, RH, Black	1
24	T2082734	Footrest Rear, LH, Black	1
25	T2082341	Rear Footrest Rubber	2
26	T2082733	Footrest Rear, RH, Black	1
27	T3331313	Screw, Csk, M5 x 12, Enc	4
28	T2080954	Pivot Pin, Rear Footrest	2
29	T2082545	Plate, Detent	2
30	T2081675	Detent Ball	4
31	T2081674	Spring, Detent	4
32	T3501312	Circlip, Int,12 x 1	2
33	T2082949	Plate, Detent	2
34	T3050321	Screw, Cap/Hd, M8 x 20, Slv	2
35	T3202304	Bolt, RHHF, M6 x 20, Slv	1
36	T3202342	Bolt, RHHF, M6 x 42, Slv	1

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx (sometimes without >)
xxxxx > means FROM Ident Number xxxxx (all from this Number and higher)

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.
