Injection - Street Triple & RX from VIN 560477

EPC Operating Instructions:
- select parts by number from the picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- every OEM-Nr. = 1 piece > adjust amount in cart
- compare hints (if given) with your VIN
- new fairings includes decals / are ready for installation
- for repairs decals can be ordered as single / use our support to check the correct part number before ordering

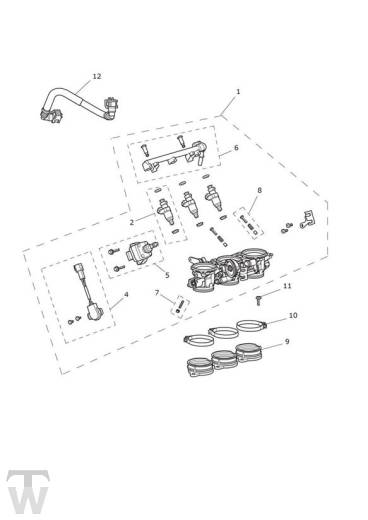

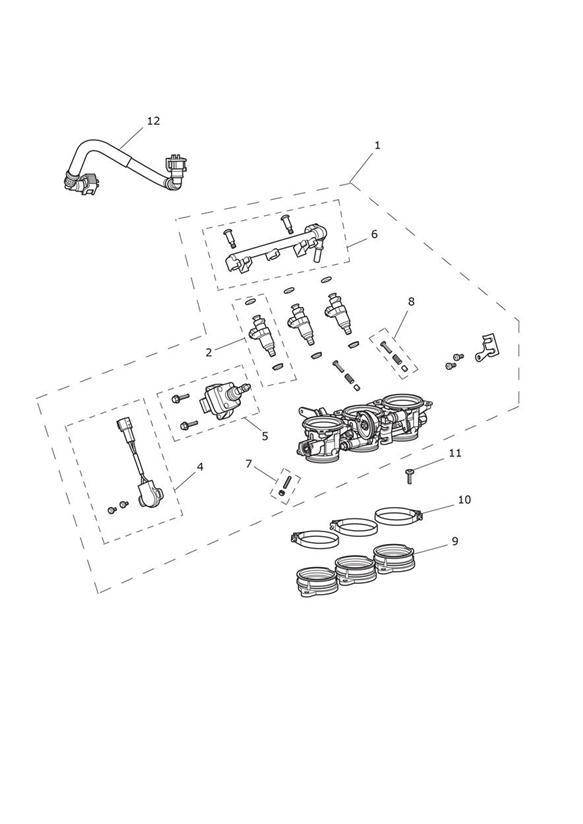

Nr.	OEM-Details	Description	Needed	Hints
1	T1241675	Throttle Body Assy	1
2	T1242821	Fuel Injector Assy	3
4	T1242817	Throttle Position Sensor Kit	1
5	T1242818	Actuator, ISC Set	1
6	T1240508	Fuel Rail Assembly	1
7	T1243001	Throttle Stop Kit	1
8	T1242816	Throttle Balancer Kit	2
9	T1240677	Transition Piece, Rubber, TBody	3
10	T3701055	Band Clamp,55mm	3
11	T3330931	Screw, Csk, M6 x 20. Slv	6	> Eng No 579957
11	T3331200	Screw, CSK, M6 x 20, T30, SLV, Enc	6	Eng No 579958 >
12	T1245583	Hose Assy, Fuel Feed, Rubber	1
13	T1241460	Kit, ISC Spares	1	Kit of spare parts for item 5

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx (sometimes without >)
xxxxx > means FROM Ident Number xxxxx (all from this Number and higher)

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.
