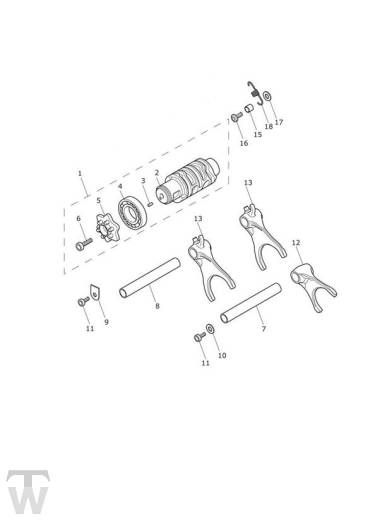

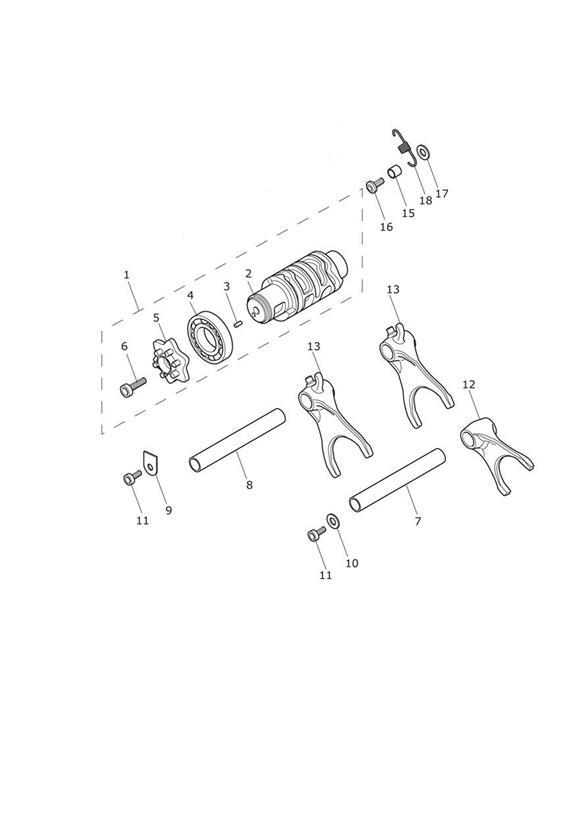

Gear Selector Drum - Tiger XC up to VIN 855531

EPC Operating Instructions:
- select parts by number from the picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- every OEM-Nr. = 1 piece > adjust amount in cart
- compare hints (if given) with your VIN
- new fairings includes decals / are ready for installation
- for repairs decals can be ordered as single / use our support to check the correct part number before ordering

Nr.	OEM-Details	Description	Needed	Hints
1	T1193334	Selector Drum	1
2	T1190089	Selector Drum	1
3	T3000043	Dowel, Dia 4mm	1
4	T1190286	KUGELLAGER	1
5	T1193335	Detent Wheel	1
6	T3050302	Capscrew, Skt/Hd, M6 x 35	1
7	T1197003	Selector Shaft, Input Gear	2
8	T1197004	Selector Shaft, Output Gear	1
9	T1190207	ANKERSCHEIBE	1
10	T3555012	Washer,6.4 x 16 x 2	1
11	T3051069	Screw, Cap/Hd, M6 x 10, Enc, Raw	2
12	T1192345	Fork Selector, Input	1
13	T1192366	Selector Fork, Output	2
15	T3000042	SPACER, TURNED	1
16	T3331041	Screw, Pan/Hd, Tx, M6 x 25, Enc	1
17	T3555004	Washer,6.4 x 14 x 1.6	1
18	T1190109	Spring, Linear, Detent Arm	1

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx (sometimes without >)
xxxxx > means FROM Ident Number xxxxx (all from this Number and higher)

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.
