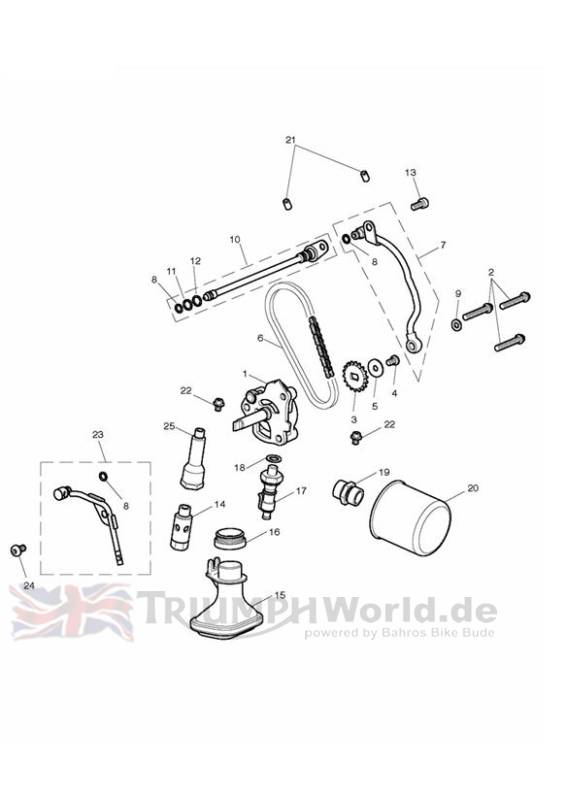

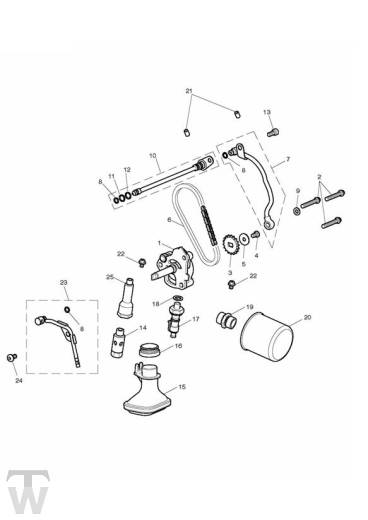

Oilpump Lubrication - Thunderbird 1600 & 1700

EPC Operating Instructions:
- select parts by number from the picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- every OEM-Nr. = 1 piece > adjust amount in cart
- compare hints (if given) with your VIN
- new fairings includes decals / are ready for installation
- for repairs decals can be ordered as single / use our support to check the correct part number before ordering

Nr.	OEM-Details	Description	Needed	Hints
1	T1210113	Pump, Oil, Single Rotor	1
2	T3201029	Schraubbolzen, M6 x 40	3
3	T1210114	Sprocket, Aux Drive,18t	1
4	T3331042	Screw, Pan/Hd, Tx, M6 x 12, Enc	1
5	T3551283	Washer, M10,10.5x18x1.6, Slv	1
6	T1210118	Chain, Aux Drive,54 Links	1
7	T1210149	Pipe, Oil	1
8	T3600233	O-Ring,6.1 x Dia 1.6	3
9	T3555012	Washer,6.4 x 16 x 2	1
10	T1210156	Spray Bar, Oil	1
11	T3600147	O-Ring,8.1 x 1.6, Viton	1
12	T3600143	O Ring, ID 9.1 x 1.6, Viton	1
13	T3051063	Screw, Cap/Hd, M6 x 16, Enc, Raw	1
14	T1211065	Pressure Relief Valve	1
15	T1210112	Strainer, Oil	1
16	T3600128	Seal, Oil, Strainer	1
17	T1210091	Oil Pressure Switch, M10	1
18	T3550546	Washer, Cu, OD 16 x ID 10.2/	1
19	T1210438	Oil Filter Adaptor	1
20	T1218001	Oil Filter, OES	1
21	T1211000	OELDUESE KOLBEN	2	> Eng No 413724
21	T1211012	HUELSE, OELDUESE KOLBEN 1.2 MM	2	Eng No 413725 >
22	T1210057	OELDUESE	2
23	T1216000	Assy, Spraybar, Oil, Stator	1
24	T3331042	Screw, Pan/Hd, Tx, M6 x 12, Enc	1
25	T1215555	Adapter, Shrouded, Prv	1

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx (sometimes without >)
xxxxx > means FROM Ident Number xxxxx (all from this Number and higher)

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.
