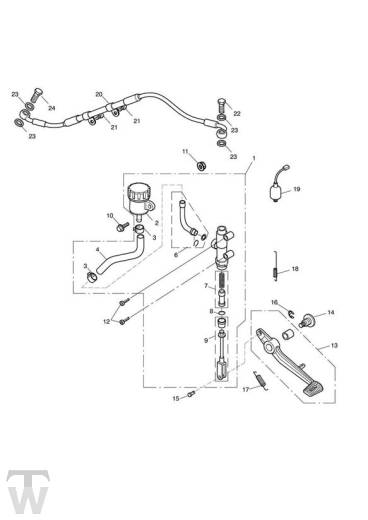

Master Cylinder Assy rear - Street Triple from VIN560477

EPC Operating Instructions:
- select parts by number from the picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- every OEM-Nr. = 1 piece > adjust amount in cart
- compare hints (if given) with your VIN
- new fairings includes decals / are ready for installation
- for repairs decals can be ordered as single / use our support to check the correct part number before ordering

Nr.	OEM-Details	Description	Needed	Hints
1	T2021352	Master Cylinder Assy, Rear	1
2	T2024070	Rear M/Cyl Reservoir	1
3	T2023188	HoseKLEMME	2
4	T2020974	Rear Brake Reservoir Hose	1
6	T2023189	ANSCHLUSSSTUECK FUSSBREMSZYL.	1
7	T2020031	Piston Set	1
8	T2020472	Circlip, M'cyl, Rear	1
9	T2021129	Push Rod Assy, Rear M/Cyl	1
10	T3205070	Bolt, HHF, Lghtd, M6 x 30, Slv	1
11	T3350003	Sich.mutter	1
12	T3051075	Screw, But/Hd, Tx, SS, M8 x 35	2
13	T2026206	Brake Pedal Assy	1
14	T3331614	Bolt, Shld, M8, Slv Enc	1
15	T3000301	Pin, Clevis,8 x 13.7	1
16	T3000302	Clip,8mm, Clevis Pin	1
17	T2020897	Spring, Brake Lever Return	1
18	T2026203	Spring, Brake Switch	1
19	T2025550	Rear Brake Switch	1
20	T2021424	Braided Rear Brake Hose	1	NA to ABS Version
21	T3050341	Screw, Cap/Hd, M5 x 10, Slv	2
22	T3250125	Bolt, Banjo, M10 x 21	1
23	T3550229	Washer,15.2 x 10 x 1, Plated	4
24	T3250032	Banjo Bolt, M10 x 19	1

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx (sometimes without >)
xxxxx > means FROM Ident Number xxxxx (all from this Number and higher)

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.
