Benzintank - Rocket III Roadster

ETK Bedienungshinweise:
- Teile anhand der laufenden Nummer aus dem Teilefiche in der Tabelle auswählen
- Artikelnummer anklicken, um zu den Details zu gelangen und die entsprechende Menge in den Warenkorb zu legen
- [Zurück zur letzten Seite] Link benutzen, um zu dieser Teileliste zurückzukehren

- jede OEM-Nr. ist nur 1 Stück! Die Menge muss im Warenkorb angepasst werden!
- Spalte [Benötigt] und [Hinweise] beachten! Hinweise zur VIN Trennung mit der eigenen FIN vergleichen!
- Verkleidungsteile (Neuteile) sind mit Dekor versehen und montagefertig
- bei Unsicherheit ob Teile passen, schreibt uns gern vorher eine Mail mit eurer Fahrgestellnummer

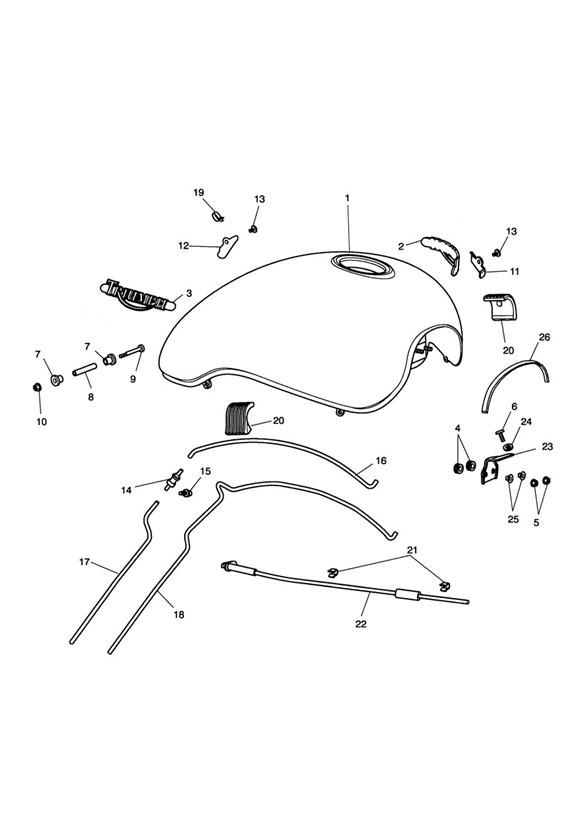

Nr.	OEM-Details	Bezeichnung	Benötigt	Hinweise
1	T2400470-PG	FUEL TANK ASSY, SPARES, JET BLK	1	Jet Black > 281465; Includes badges, items 2 & 3
1	T2400440-PG	Fuel Tank Assy	1	Jet Bkack > 281465 - no badges
1	T2400470-CL	FUEL TANK ASSY, SPARES, C.RED	1	Cardinal Red > 281465; Includes badges, items 2 & 3
1	T2400470-LC	Fuel Tank Assy	1	Graphite 210262 > 281465; Includes badges, items 2 & 3
1	T2400470-FG	Fuel Tank Assy	1	Scorched Yellow 241570 > 281465; Includes badges, items 2 & 3
1	T2400601-JR	Fuel Tank Assy	1	Caeruleus Blue - Tribal only > 281465; Includes badges, items 2 & 3
1	T2400601-CS	Lackstift Kit	1	Mulberry Red - Tribal only > 281465; Includes badges, items 2 & 3
1	obs T2400491-PG	Fuel Tank Assy	1	Jet Blk/Sunset Red - Classic only > 281465; Includes badges, items 2 & 3
1	obs T2400491-TB	Fuel Tank Assy	1	Cherry Red/New England White - Classic only > 281465; Includes badges, items 2 & 3
1	obs T2401180-PG	Fuel Tank Assy	1	Jet Back/New England White; Special Edition Classic only; Includes badges, items 2 & 3
1	obs T2401180-CL	Fuel Tank Assy	1	Cardinal Red/Phantom Black; Special Edition Classic only; Includes badges, items 2 & 3
1	obs T2401180-LC	Fuel Tank Assy	1	Graphite Grey/Eclipse Blue; Special Edition Classic only; Includes badges, items 2 & 3
1	T2401160-CS	Fuel Tank Bag	1	Mulberry Red 281466 > 317246; Includes badges, items 2 & 3
1	T2405617-PR	Fuel Tank Assy	1	Phantom Black 281466 > ; Includes badges, items 2 & 3
1	T2401160-CT	Fuel Tank Assy	1	Claret - 317247 > ; Includes badges, items 2 & 3
1	obs T2400608-PG	Fuel Tank Assembly	1	Jet Black/Sunset Red - Classic Only
1	T2400609-PR	Fuel Tank Assy	1	Phantom Black/Sunset Red Classic Only 281466 > 317246 ; Includes badges, items 2 & 3
1	obs T2400609-JI	Fuel Tank Assy	1	Pacific Blue/New England White Classic Only 281466 > 317246; Includes badges, items 2 & 3
1	T2400609-CM	Fuel Tank Assy	1	Phantom Black/Tornado Red Classic Only 281466 > 317246; Includes badges, items 2 & 3
1	obs T2400609-TB	Fuel Tank Assy	1	Cherry Red/New England White - Classic only 317247 > ; Includes badges, items 2 & 3
1	T2400609-MH	Fuel Tank Assy	1	Pacific Blue/Aluminium Silver - Classic only 317247 > ; Includes badges, items 2 & 3
1	T2405617-PR	Fuel Tank Assy	1	Phantom Black - Roadster Only > 574812; Includes badges, items 2 & 3
1	T2405617-PS	Fuel Tank Assy	1	Matt Black - Roadster Only > 574812; Includes badges, items 2 & 3
1	T2405607-PU	Fuel Tank Assy	1	Phantom Red Haze - Roadster Only > 550006; Includes badges, items 2 & 3
1	T2405607-PV	Fuel Tank Assy	1	Phantom Blue Haze - Roadster Only > 550006; Includes badges, items 2 & 3
1	T2405678-PR	Fuel Tank Assy	1	Phantom Black - 574813 > ; Includes badges, items 2 & 3 & decals 27 & 28
1	T2405678-PD	Fuel Tank Assy	1	Matt Phantom Black - 574813 > ; Includes badges, items 2 & 3 & decals 29 & 30
1	T2405680	Fuel Tank Assy,8 Ball	1	Rocket X Only
2	T2400442	TANK BADGE, LH	1	> 574812
2	T2409052	Badge, Fuel Tank, LH	1	574813 > N/A to Rocket X
3	T2400443	TANK BADGE, RH	1	> 574812
3	T2409053	Badge, Fuel Tank, RH	1	574813 > N/A to Rocket X
4	T3020153	Grommet,13 x 3 x 10	2
5	T3350305	Locknut, Flgd, M6 x 1.0, Slv	2
6	T3330727	Screw, But/Hd, M6 x 20, Slv	1	> 463613
6	T3330727	Screw, But/Hd, M6 x 20, Slv	1	463614 >
7	T2400446	BUSH, RUBBER	2
8	T2400449	SLEEVE, OD 8.0X91	1
9	T3205079	Bolt, HHF, Lghtd, M6 x 105, Slv	1
10	T3350012	Sich.mutter	1	> 435533
10	T3350003	Sich.mutter	1	435534 >
11	T2400469	BRACKET, FRONT AIRBOX MNTG	1
12	T2400468	BRACKET, REAR AIRBOX MNTG	1
13	T3205063	Bolt, HHF, Lghtd, M6 x 16, Slv	2
14	T2401144	Kit, Roll Over Valve	1	> 261934 - ALL MKTS except UC
14	T2401143	Kit, Roll Over Valve	1	> 266508 - UC only
14	T2400074	Roll Over Valve	1	261935 > ALL MKTS except UC; 266509 > UC only
15	T3700072	Kabelverbinder	1
16	T2400775	HOSE, FORMED	1
17	T2401144	Kit, Roll Over Valve	1	> 261934 - ALL MKTS except UC
17	T2400778	Hose, Twin Wall, Swaged	1	261935 > ALL MKTS except UC
18	T2400777	HOSE, FORMED	1	ALL MKTS except UC
19	T2046007	Clip cable	1
20	T2400444	RUBBER, TANK SUPPORT	2	> 244782
20	T2400478	Rubber, Tank Support	2	244783 >
21	T3700062	Widerhaken-bef.	2
22	T2402901	Support, Fuel Tank	1
23	T2400460	PRESSING, FRONT MOUNT	1	> 244782
23	T2400479	Front Mount	1	244783 >
24	T3555025	Washer,6.4 x 18 x 1.6	1	> 463613
24	T3555026	Washer,6.4 x 18 x 1.6	1	463614 >
25	T3010702	Flanged Sleeve,6.4 x 10 x 8.5	2
26	T3660155	Foam Pad	1	> 244782
27	T2402529	Decal, Fuel Tank, Front, Red	1	Not illustrated - Fit to T2405678-PR
28	T2402589	Decal, Fuel Tank, Rear, Red	1	Not illustrated - Fit to T2405678-PR
29	T2402543	Decal, Fuel Tank, Front, White	1	Not illustrated - Fit to T2405678-PD
30	T2402544	Decal, Fuel Tank, Rear, White	1	Not illustrated - Fit to T2405678-PD

Bedeutung der Hinweise (VIN oder ohne Hinweis=Fahrzeugidentnummer / ENG=Motornummer)
> xxxxx bedeutet BIS Identnummer xxxxx (manchmal auch ohne > davor)
xxxxx > bedeutet AB Identnummer xxxxx (alle ab dieser Idennummer aufwärts)

LH bedeutet Left Hand / Links
RH bedeutet Right Hand / Rechts

obs (obsolete) bedeutet Wird nicht mehr produziert = Nicht mehr bestellbar.
