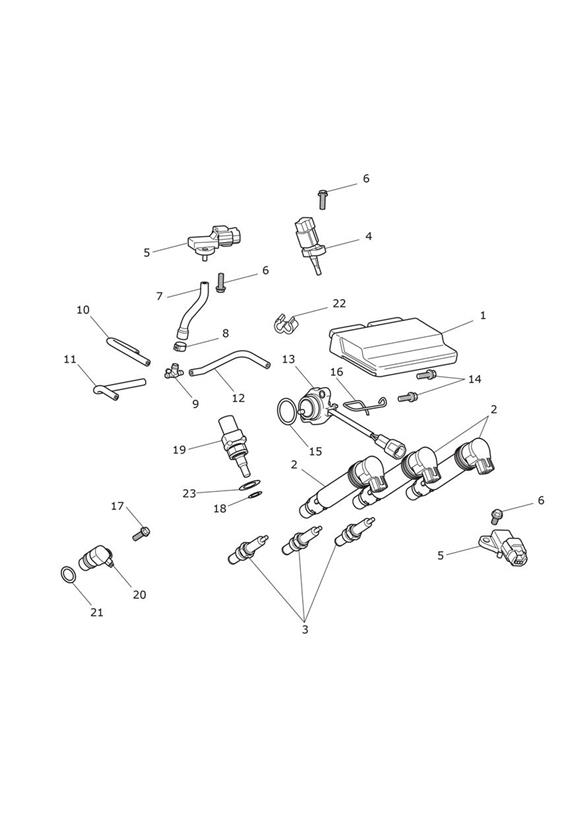

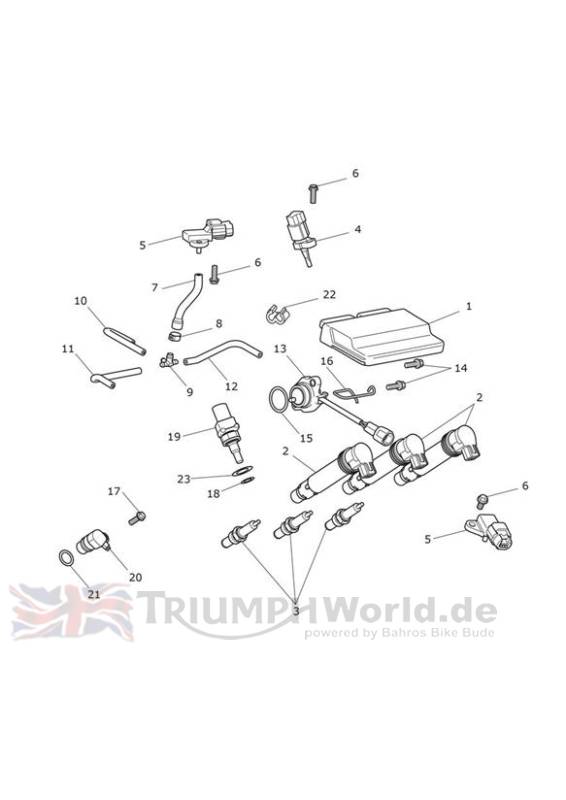

Engine Management - Street Triple RS from VIN 966534

EPC Operating Instructions:
- select parts by number from the picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- every OEM-Nr. = 1 piece > adjust amount in cart
- compare hints (if given) with your VIN
- new fairings includes decals / are ready for installation
- for repairs decals can be ordered as single / use our support to check the correct part number before ordering

Nr.	OEM-Details	Description	Needed	Hints
1	T1290960	ECM, Base, KTKS	1
2	T1291504	Coil, Ignition	3
3	T1291023	Spark Plug	3
4	T1290088	Sensor, Air Temperature	1
5	T1290975	Air Pressure Sensor	1
6	T3332464	Screw, S/Tap, Tx,5 x 25	2
7	T1290285	Hose, Map Sensor	1
8	T3700077	Splint	1
9	T1242929	Connector,4 Way	1
10	T1292075	Hose, Throttle Body, Cyl 1	1
11	T1292076	Hose, Throttle Body, Cyl 2	1
12	T1292077	Hose, Throttle Body, Cyl 3	1
13	T1299232	Gear Position Sensor	1
14	T3205066	Bolt, HHF, Lghtd, M6 x 20, Slv	2
15	T3600267	O-RING,26.65IDX2.62DIA	2
16	T3700154	Führung	1
17	T3205064	Bolt, RHHF, Domed, S/S, M6 x 16, Enc	1	> Eng No AF5987 - All Expt BR & > Eng No AF7304 - BR Only
18	T3550571	Washer, Cu, OD 16 x ID 12.5	1
19	T2100808	Sensor, Coolant Temp	1
20	T1164500	Blanking Plug	1	> Eng No AF5987 - All Expt BR & > Eng No AF7304 - BR Only
21	T3600085	O-RING, ID 14.6, SD 2.4	1	> Eng No AF5987 - All Expt BR & > Eng No AF7304 - BR Only
22	T2040811	Twin Clip, Brake Hose	2
23	T1290566	Washer,18.8 x 11.5 x 1.0, Tapered	1

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx (sometimes without >)
xxxxx > means FROM Ident Number xxxxx (all from this Number and higher)

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.
