Gear Selection Shaft - Sprint Carburator

EPC Operating Instructions:

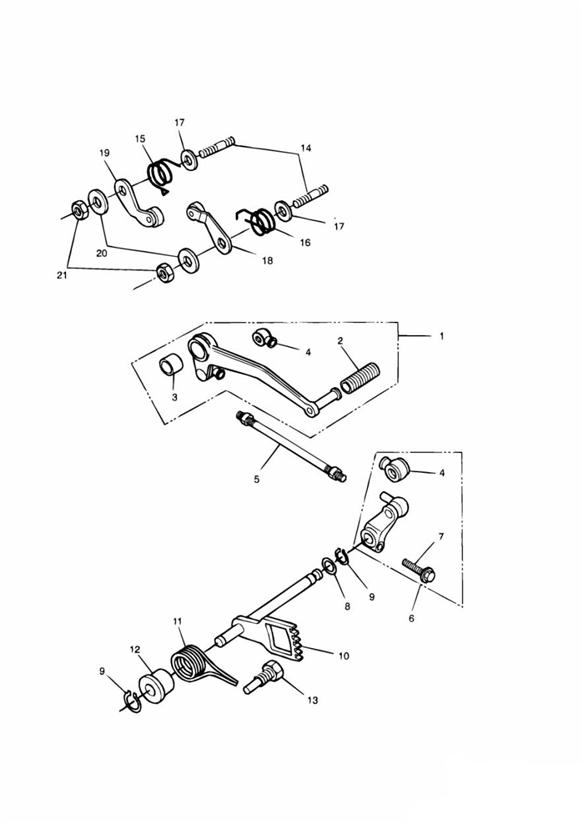

- select parts by number from the picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- every OEM-Nr. = 1 piece > adjust amount in cart
- compare hints (if given) with your VIN
- new fairings includes decals / are ready for installation
- for repairs decals can be ordered as single / use our support to check the correct part number before ordering

Nr.	OEM-Details	Description	Needed	Hints
1	2080095-T0301	Pedalbausatz	1
1	T2080237	Pedalbausatz	1	Sprint Executive
2	2080043-T0301	Gummi	1
3	3750005-T0301	Buchse	1
4	obs T2085022	Boot, Ball Joint	2
5	T2080553	Stange, baugruppe	1
6	T2080045	Klemme komplett	1
7	T3050059	Hutschraube	1	M6 x 20mm
8	T3555003	Washer,12 x 18 x 1.2	1
9	obs 3500008-T0301	Seegerring	2
10	T1190255	SCHALTWELLE	1
11	obs T1190160	Return spring	1
12	obs 1190340-T0301	BUCHSE, RUECKHOLFEDER	1
13	obs 1190170-T0301	BOLZEN FEDERANSCHLAG	1
14	obs 3100002-T0301	Stiftschraube	2	M6 x 23mm
15	obs 1190335-T0301	FEDER, ARRETIERHEBEL GAENGE	1	Gears
16	obs 1190140-T0301	FEDER, ARRETIERHEBEL NEUTRAL	1	Neutral White
17	T3555017	Washer,6.5 x 12.5 x 0.8	2	M6
18	obs 1190021-T0301	ARRETIERHEBEL, NEUTRAL	1	Neutral
19	obs 1190022-T0301	ARRETIERHEBEL, GAENGE	1	Gears
20	T1190192	Collar, Detent Arm	2
21	T3350300	Nut, M6 x 1.0, Slv	2	M6

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx (sometimes without >)
xxxxx > means FROM Ident Number xxxxx (all from this Number and higher)

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.

ATTENTION: Parts from fiches will be specially ordered for your Triumph motorcycle from the manufacturer.
The fee for returned parts is 25%.
