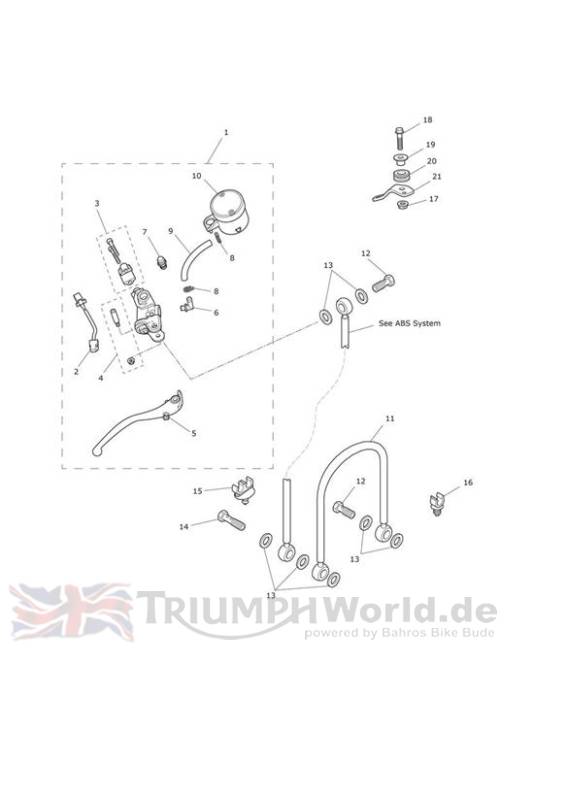

Master Cylinder Assy front - Daytona R from 564948

EPC Operating Instructions:
- select parts by number from the picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- every OEM-Nr. = 1 piece > adjust amount in cart
- compare hints (if given) with your VIN
- new fairings includes decals / are ready for installation
- for repairs decals can be ordered as single / use our support to check the correct part number before ordering

Nr.	OEM-Details	Description	Needed	Hints
1	T2025930	Front Master Cylinder	1
2	T2025911	Microswitch	1
3	T2025912	Clamp, M/Cyl	1
4	T2025913	Lever Pin	1
5	T2025899	Front Brake Lever	1
6	T2025915	Pipe Fitting, M/Cyl	1
7	T2025916	Bleeder Screw, M/Cyl	1
8	T2025918	Clip, Reservoir, M/Cyl	2
9	T2025917	Reservoir Hose, M/Cyl	1
10	T2025919	Reservoir, M/Cyl	1
11	T2021099	Hose, Brake, Link	1
12	T3250032	Banjo Bolt, M10 x 19	2
13	T3550229	Washer,15.2 x 10 x 1, Plated	7
14	T3250041	Banjo Bolt, M10 x 30	1
15	T3700235	Multi Brake Hose Clip	1
16	T3700233	Clip, Brake Hose	1
17	T3350003	Sich.mutter	1
18	T3205067	Bolt, HHF, Lghtd, M6 x 25, Slv	1
19	T3010702	Flanged Sleeve,6.4 x 10 x 8.5	1
20	T3020050	Gummilager	1
21	T2020807	Bracket, Front M/Cyl Reservoir	1

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx (sometimes without >)
xxxxx > means FROM Ident Number xxxxx (all from this Number and higher)

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.

ATTENTION: Parts from fiches will be specially ordered for your Triumph motorcycle from the manufacturer.
The fee for returned parts is 25%.
