EVAP System - Tiger Explorer

EPC Operating Instructions:
- select parts by number from the picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- every OEM-Nr. = 1 piece > adjust amount in cart
- compare hints (if given) with your VIN
- new fairings includes decals / are ready for installation
- for repairs decals can be ordered as single / use our support to check the correct part number before ordering

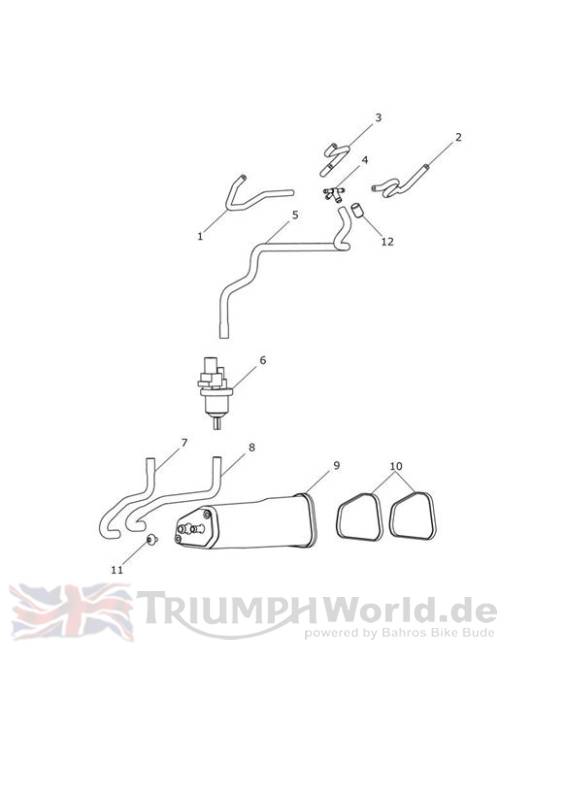

Nr.	OEM-Details	Description	Needed	Hints
1	T1241730	Hose, Map, Cyl 3	1
2	T1241729	Hose, Map, Cyl 1	1
3	T1241731	Hose, Map, Cyl 2	1
4	T1242929	Connector,4 Way	1
5	T1241490	Hose, Evap, Purge	1	UC, HK & CA Only
6	T1240802	Flush Valve	1	UC, HK & CA Only
7	T2400684	Hose, Carbon Canister to Solenoid	1	UC, HK & CA Only
8	T2400434	Hose, Roll Over Valve to Canister	1	UC, HK & CA Only
9	T2403010	Carbon Cannister	1	UC, HK & CA Only
10	T3700016	Cablebinder	1	UC, HK & CA Only
11	T3332568	Screw, But/HD, M5 x 8, Slv	1	UC, HK & CA Only
12	T1245095	Cap, Evap	1	All Mkts Except UC, HK & CA

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx (sometimes without >)
xxxxx > means FROM Ident Number xxxxx (all from this Number and higher)

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.

ATTENTION: Parts from fiches will be specially ordered for your Triumph motorcycle from the manufacturer.
The fee for returned parts is 25%.
