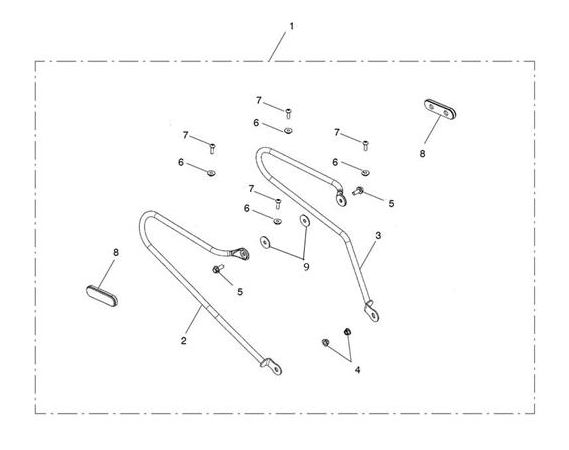

Pannier Carriers Single Parts A9518213, A9518219 & A9518289

EPC Operating Instructions:
- choose parts by number from picture
- click article number for details and put the needed quantity into the cart
- use [Back to last page] link to come back to this parts fiche

- Note the colums [Needed] and [Hints]. Compare your VIN with the given hint.
- new fairings are attached with decals and ready to mount
- if you are unsure selecting the right parts, please wright us an email including your VIN
- every part number is 1 piece each! >> Adjust the needed amount before putting them into the cart!

Nr.	OEM-Details	Description	Needed	Hints
1	obs A9518289	Pannier Rails Kit	1	Replaced by A9518219
1	A9518219	Pannier Rail Kit	1	Similar to A9518213
2	T9518161	Pannier Rail, RHS, Chrome	1
3	T9518162	Pannier Rail, LHS, Chrome	1
4	T3350004	Flanschmutter	2
5	T3205469	Bolt, HHF, Lghtd, M8 x 20, Enc	2
6	T9910908	Sleeve, Flgd,6.4 x 11.5 x 4	4
7	T3331234	Screw, Torx, P/H, M6 x 20, Slv	4
8	T2700443	Rückstrahler	2
9	T3550331	Washer,8.5 x 30 x 2	2

Meaning of Hints (VIN or without=Compare Vehicle Ident Number / ENG=Engine Nummer)
> xxxxx means UP TO Ident Number xxxxx
xxxxx > means FROM Ident Number xxxxx

LH means Left Hand / LEFT
RH means Right Hand / RIGHT

obs (obsolete) means No more fore sale / Sold out.

ATTENTION: Parts from fiches will be specially ordered for your Triumph Enginecycle from the manufacturer.
The fee for returned parts is 25%.
